Cimbria SS

[nbb350]

Thank you for your detailed reply! Those seats look SO narrow, but they're still too wide for my car (and I really love how the headrest tilts forward).
This goes to show just how LITTLE room we have with dropped pans in the factory chassis...I would need 16.5" max to fit.
Your custom chassis has many advantages!!



[Brett Proctor]

I would need 16.5" max to fit.

You should be able to make bases for those Corvette Seats to fit

This is from the molds I made for my Corvette seats

Front measures 16.25"

Rear measures 17.25 ( floor has a taper to it)

I removed the recline mechanism to allow more room for the floor cushions. I did have to persuade the floor cushion to fit because the new base is narrower than the oem base, but it needed no trimming and I used the oem back shell with no modifications however I did make spacers so I could bolt it up to the modified hinge mechanism.
This has been noted in other posts so sorry for the repeat.



[nbb350]

Yeah, I already went a ways down that path. I bought two C4 seats and the recline mechanisms were rusted/broken. Not a lot of options up here in the RustBelt. I've already made heavy mods to my current seats, which now only need pretty seat covers. BUT, if there was a drop-in option, I'd rather go that route.



[Brett Proctor]

The pick a part yards here have a few Corvettes in them

Things don't rust in this neck of the woods. I can check to see if the seats are still there.

The cushions probably are not there but the hinges might be.
I can get those for you, if you want to go with the corvette seats.
Have no idea what shipping would be for something like that or what the yards would want for them.

Just throwing that out there.



[sector]

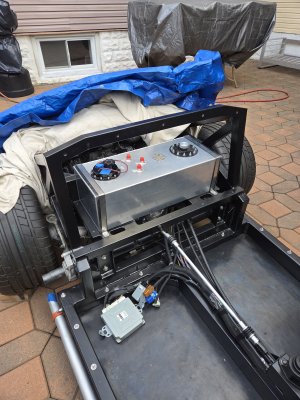

Installed Holley in-tank fuel pump and mounted the fuel tank. The straps holding the tank were formed from 1" stainless steel banding materials. Now waiting for the fittings to connect fuel lines.



[Brett Proctor]

Your putting a lot of time and money into this project, I was just wondering if you've done any maintenance to the engine to make sure its in good working order.

Don't know how many miles are on the engine but its recommended to replace the timing belt and its components every 60,000 miles.

Also read that there can be issues with oil supply to the turbo causing premature turbo failure.

There are other things but I thought since its easy to get to the engine, now would be a good time to look at these things if not already done.



[sector]

The engine is new old stock. It only had dyno time. I got it from the co-worker for a symbolic fee (paid for the storage unit while he was moving). It was purchased brand new back in 2003, to be used in the airplane application, but it did not fit so it sat in the storage until few years ago, when I got it. I took it apart and replaced every single seal and a belt just for precautionary reasons.



[Brett Proctor]

You didn't say what belt you replaced
Got this off the web so you don't think its just my opinion.


6-7 years
When an engine is not in use for an extended period, such as when it sits for a long time, the timing belt can still wear out over time due to natural degradation of the belt material. Manufacturers often recommend replacing the timing belt every 6-7 years, regardless of mileage, to prevent potential engine damage. This is because rubber components like the timing belt deteriorate chemically due to heat cycling, exposure to oil vapors, and simple aging. Therefore, even if the mileage threshold has not been reached, it is essential to consider the belt's age and replace it if it has been sitting for more than 5 or 6 years.

The reason I'm bring this up is that the engine is an interference engine. Just hate to see something happen (that's avoidable) after all the work you've done.



[sector]

Yes, all belts, including timing belt were replaced. I even replaced the head gasket just to be on the safe side.



[sector]

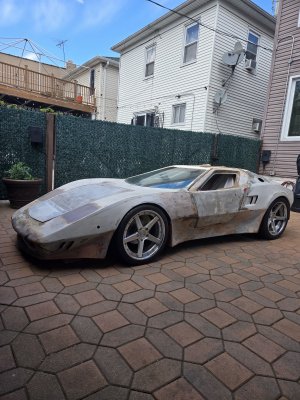

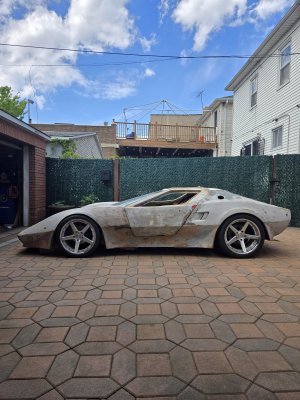

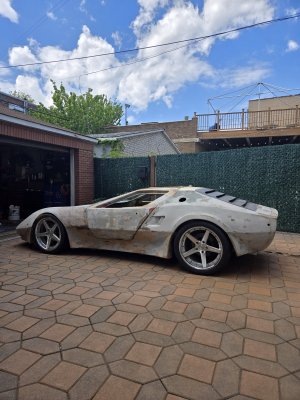

What is your opinion on the ground clearance? I currently have mine set at 5". Based on my research modern corvette range between 4 - 5.3" depending on the model year and suspension options. So should I stay with my current setting or raise it by 1/2 - 1"?



[farfegnubbin]

Hmm, that’s a good question. I really like the current stance, especially how nicely the wheels and tires fill your wheel wells. The most common stance problem with Sterlings/Cimbrias/etc is for them to be set up way too high with wheel wells that look empty.

All that said, I hate it when the nose scrapes the road. I’ve always tried to set things up such that the nose has as much clearance as possible while still having the wheel wells look full.

You car seems like it is not yet in danger of the wheel wells looking empty or weird so I think you COULD raise the body a little. But I think it looks great as is.

If you’re pretty confident that the nose has enough clearance as is to keep you happy, then just leave it at its current height.

Said one more way, the body looks low without it looking “slammed,” and that’s a good thing in my opinion. I was glad you weren’t asking whether you should go lower.

It looks great as is. I think it would still look fine 1” higher if you needed that for functionality.



[sector]

What are the current options fir the windshield wiper?



[Brett Proctor]

Looked at the assembly manual and they show only the pantograph style wiper install.

That doesn't mean you can't install a different style.

Quick thoughts to install a dual system are relocation of the motor and coming up with a different linkage system and new mounts for the wiper arms
I don't know if there is a car that you can pull that style out of and with minimum effort install it in your car.
I know todays systems use smaller motors to operate the wipers.

I think the length of the wipers may be a problem. To get them to lay flat and out of the way in the parked mode the length of the arm may then be to short to cover the area of the windscreen when in use.

Can you use one large wiper blade to lay flat in park mode and cover the windscreen. maybe a better option. but probably wont do a good job on the passenger side.


Can it be done?? Don't know, I've never looked into doing that. I have read about people thinking of doing it but never seen it done.

Some research and experimenting with location and length of the arms would be needed I think to see if it can be done.



[letterman7]

Wipers and motors have traditionally been sourced from transit buses and motor homes. There are some fairly compact marine pantograph units out there as well.



[sector]

Con you please provide links. Thanks



[letterman7]

Marine Pantograph Wiper System Kit (minimum 30" x 30" glass) - AM Equipment

Product Details: This kit is for windshields with equal height and width or taller than wide, minimum 76 cm (30”) wide and 76 cm (30”) high Designed to replace an existing windshield wiper system or for a boat without an existing system Available for aluminum hull (maximum bulkhead thickness 13...

www.amequipment.com

Pantograph and pendulum wipers - Speich

Home Pantograph and pendulum wiper choice Since 1959, SPEICH produces and designs professional pantograph and pendulum wipers to ensure: High strength and corrosion resistance for any marine conditions; Compact design of the motor assembly for an easy installation; Large choice...

speich.com

Sea-Dog : Quality Marine, Industrial and Rigging Hardware

Sea-Dog

sea-dog.com

Search: 4 results found for "pantograph wiper kit"

Veurink's RV Center

findmyrvparts.com

Products

WiperExpress manufactures premium automotive passenger car and truck windshield wiper blades and heavy duty commercial vehicle wiper blades, wiper motors and arms.

www.wiperexpress.com



[sector]

Some good options. Thank you for that info.



[sector]

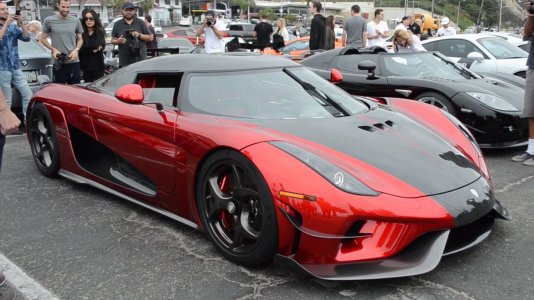

Has anyone ever done wiper setup like on koinsegg, where it's centrally located?



[letterman7]

Sterling wipers are centrally located. Hence the pantograph setup. You can do the same with a Cimbria.



[farfegnubbin]

I wonder how they accurately “park” it exactly in the middle. I have to admit that I never really scoped out the mechanism that parks windshield wipers in a certain position.
